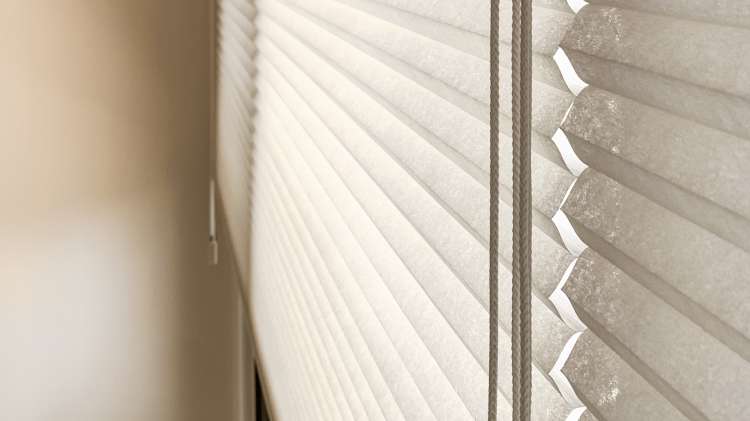

As the in-house brand of a professional Taiwanese manufacturer, Celaro Honeycomb Shades go beyond functional items for heat insulation and light blocking, they are refined soft furnishings that create a sense of artistic elegance.
More made to measure Honeycomb Shades／Cellular ShadesInsert sizes for an estimate: NTD {$ formatPrice(pre_calc_price) $} up {$ formatPrice_currency(pre_calc_price) $}
Width
cm
Out of range
Height
cm
Out of range
Customizable size range:
Width: {$ size_range.width.min ? size_range.width.min : '' $}
{$ size_range.width.min && size_range.width.max ? ' ~ ' : '' $}
{$ size_range.width.max ? size_range.width.max : '' $} cm
{$ size_range.width.max ? '' : 'Above' $}
｜Height: {$ size_range.height.min ? size_range.height.min : '' $}
{$ size_range.height.min && size_range.height.max ? ' ~ ' : '' $}
{$ size_range.height.max ? size_range.height.max : '' $} cm
{$ size_range.height.max ? '' : 'Above' $}
Colors:
Delete a swatch
Get a swatch
F31H-001 Nubo White(On Sale!)
Levels of Difficulty
Average
[Size]Cell size: 38mm
Custom-made includes headrail hardware: Can be customized within 300cm(W) x 360cm(H)
[Material] Non-woven cloth / polyester, metal headrail. (Black-out type: Inner wall of cells is black-out metallic film)
[Cleaning] Non-washable on the surface, use a dry cloth, duster or a vacuum cleaner with a brush head to dust.
■ Complete installation instructions and components attached
Cordless／String Loop
Motorized
■ Brackets and hardwares are included in the blind. The total thickness after installation, depending on the system sizes and directions of installation, is about 6～7 cm.
■ If installing in a curtain box or recess, the front-to-back depth of the recess must be at least 10 cm to avoid installation issues.
If space permits, it is recommended to reserve a depth of 15 cm or more. This allows greater flexibility for future curtain replacements and reduces potential restrictions.
■ The covering area indents 0.2cm from left and right sides. It almost aligns with the headrail.
1. Bottom-Up（Adjust the covering area only from the bottom）
2. Top-down Bottom Up（The middle rail can be fixed in the middle）
1. Pulling Cord（Safety guide attached）
2. Cordless（Max height 210cm）
3. Continuous Cord Loop（Safety Hook attached／Max height 300cm）
4. Motorized
■ System－Top Down Bottom Up
■ Operation－Cordless／Continuous Cord Loop
■ Tassel－
String Loop：All kinds of Tassel M. Design in Europe, Decorative tassel
Decide which way you'd like to install your curtain, inside mount or outside mount. Measure by the following instructions:
Inside Mount
■ Install within the window frame. Fit in the window frame.
■ Simple and smooth outlook. Reduce the area of covering window.
STEP 1：Measure the in frame width
Please measure positions of left, middle, and right. Write down the minimum figures of these three, and that is the blind width.
STEP 2：Measure the in frame height
Please measure positions of left, middle, and right. Record the maximum figures of these three, and that is the blind height
STEP 3: Measure the depth of window frame & the thickness of handle bar exceeds window frame.
Depth of window frame — thickness of operating bar exceeds window frame ≧ 6cm, the blinds can fit in the frame.
■ Minimum size unit: 0.5cm
■ The shape of window may not be vertical and level. It is suggested to measure three positions of height and width to avoid
unseccessful installation.
■ Reduce 0.5~1cm is suggested for customized width. This is to leave some space for possible alteration in installation work.
■ The surroundings of window has to be completely flat and no obstables around when deiciding window sizes.
■ Sizes shown on the products in the shipment are the complete sizes including systems and components.
■ Tools: A ladder, an electric drill (with 6mm tail), a hammer, electric screwdriver, a measuring tape, a level and a pencil.
■ Components: handle clip of bottom rail, handle clip of middle rail, self-tapping screws, normal screws, plastic nylon anchors, safety hook, brackets.
Steps:
1. Decide the method of fitting brackets: Top-fixing or Face-fixing.
2. Mark reference holes to fix support bracket. Make sure that they are leveled.
* Avoid placing the bracket onto the parts of headrail and hinder operation of the blinds.
* 3 to 4 brackets might be needed for wider products. The distances between these brackets should be the same to avoid uneven weight. *
3. Drill at the reference mark, nail plastic nylon anchors into the wall and secure the mounting brackets.
4. Snap the front clip of the spring bracket into the notch on the upper side of the shade.
5. Push up and level the headrail to fit in the notch at the back of the headrail.
6. Installation complete
The handle clips of the middle (bottom) rail: Place them in the middle point of the rail facilitates the operation.
* this installation is optional depending on your usages.
Safety hook: Set strings in and straighten it and screw tightly on the wall.
* This installation is optional depending on the usage and child safety environment.
* Notice: Keep children away from accessories, pulling cords and slats. Any installation question, please contact MSBT staff for assistance.
* Attachment: Honeycomb Shade Installation Instruction in A4 Download／Print
Warranty
• Unpack and check product conditions upon delivery
• Our on-site services or installation includes acceptance check and examination to ensure our service is well delivered.
• One-year warranty is granted under normal usages and for non man-made defects.
• When warranty period expires, maintenance or part costs will be charged after evaluation.
