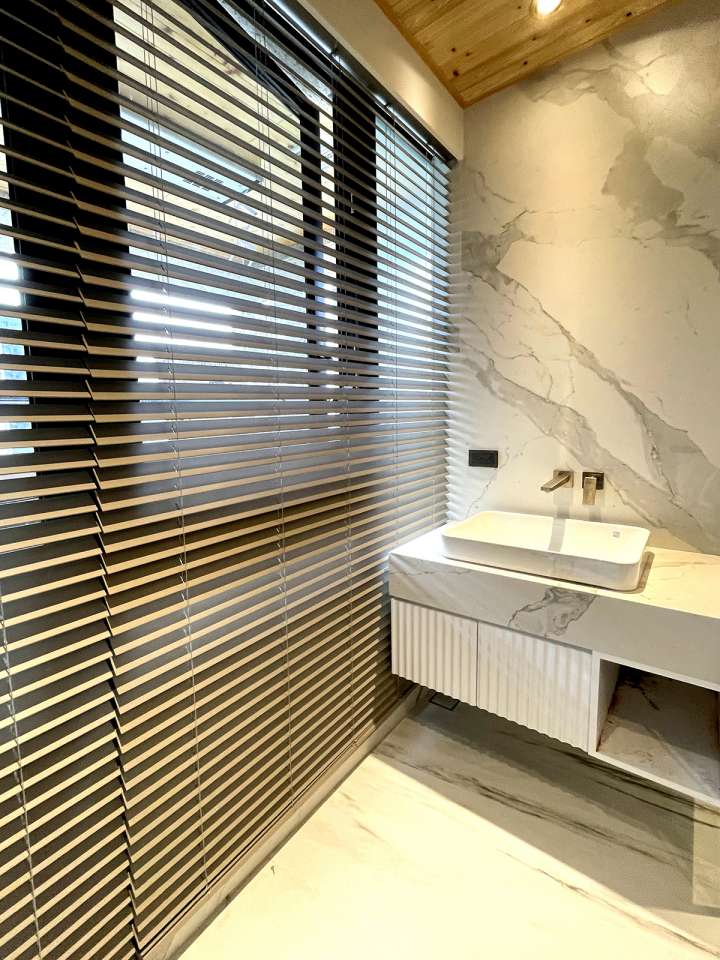

PVC / PS water-resistant slats are suitable for places containing high humidity. Refined and smooth slat textures, render natural outlook of genuine wood and create fascinating styles.
More made to measure Venetian BlindsInsert sizes for an estimate: NTD {$ formatPrice(pre_calc_price) $} up {$ formatPrice_currency(pre_calc_price) $}
Width
cm
Out of range
Height
cm
Out of range
Customizable size range:
Width: {$ size_range.width.min ? size_range.width.min : '' $}
{$ size_range.width.min && size_range.width.max ? ' ~ ' : '' $}
{$ size_range.width.max ? size_range.width.max : '' $} cm
{$ size_range.width.max ? '' : 'Above' $}
｜Height: {$ size_range.height.min ? size_range.height.min : '' $}
{$ size_range.height.min && size_range.height.max ? ' ~ ' : '' $}
{$ size_range.height.max ? size_range.height.max : '' $} cm
{$ size_range.height.max ? '' : 'Above' $}
Colors:
Delete a swatch
Get a swatch

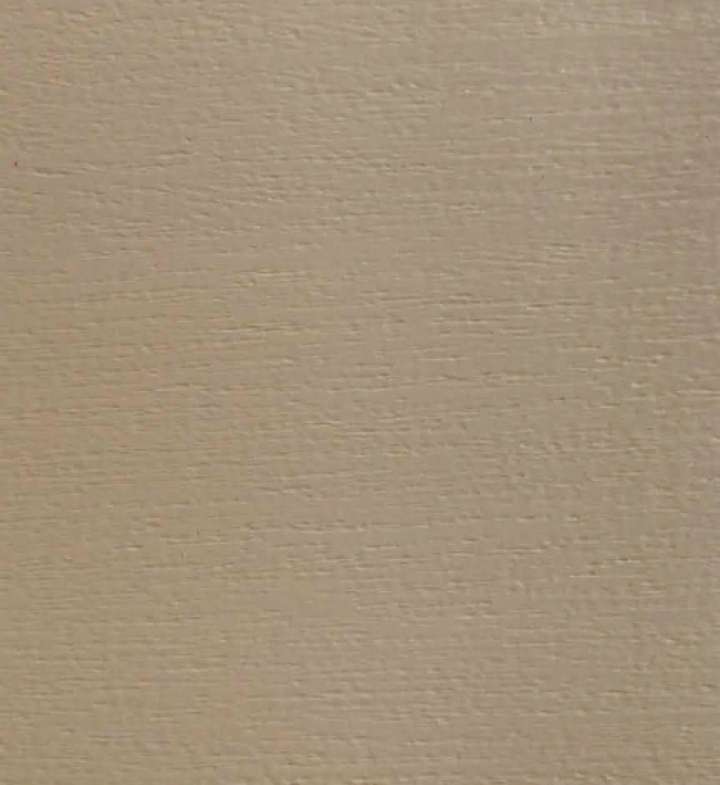

4063PF - Plain Khaki(On Sale!)
[Sizes] Including headrail hardware
Embossed – Can be customized within 45～270cm(W)× 300cm(H)
Plain / Printed – Can be customized within 38～270cm(W)× 300cm(H)
Slat width: 50mm
[Material]
Embossed – PVC extrusion molding slats, non-wooden
Plain / Printed – PS extrusion molding slats, non-wooden
Headrail – Alu. coating
[Cleaning] Waterproof slats, can use a duster, dry cloth or vacuum cleaner.
■ Complete installation instructions and components attached
Embossed
Plain / Printed
■ Brackets and hardwares are included in the blind. The total thickness after installation: Embossed is about 8.2 cm. Plain / Printed is about 7.5cm
■ If the blind is installed in the curtain box or notch, the inner depth should be at least more than 10 cm for smooth installation.
■ The covering area indents 0.2cm from left and right sides. It almost aligns with the headrail.
1. Pulling Cord
2. 25mm Ladder tape
3. 38mm Ladder Tape
Embossed
1. Pulling Cord
2. Ballchain Loop
3. Motorized Remote Control
Plain / Printed
1. Cord Loop
2. Motorized Remote Control
Embossed
Headrail valance of identical slat material attached. Decorate the metal headrail for integrated beauty
Plain / Printed
The face of headrail covered by same slat of blind
■ Headrail has 4 color choices (White /Silver Grey / Brown / Black), will use a matching color withe slats
Embossed Only
All kinds of slats/ pulling cords/ ladder tapes/ tassels.
Apart from standard colors, customers are free to match their own colors to pursue and create your own personal and unique brilliance.
Embossed
■ Metal Tassel – Metallic S Tassel, Zinc Alloy, One-piece, to replace the standard wooden tassel
■ Ballchain Loop – Choose plastic ballchain or Metallic Ballchain
■ Motorized – Remote Control & App Control by smartphone
Plain / Printed
■ Motorized – Remote Control & App Control by smartphone
Decide which way you'd like to install your curtain, inside mount or outside mount. Measure by the following instructions:
Inside Mount
■ Install within the window frame. Fit in the window frame.
■ Simple and smooth outlook. Reduce the area of covering window.
STEP 1：Measure the in frame width
Please measure positions of left, middle, and right. Write down the minimum figures of these three, and that is the blind width.
STEP 2：Measure the in frame height
Please measure positions of left, middle, and right. Record the maximum figures of these three, and that is the blind height
STEP 3: Measure the depth of window frame & the thickness of handle bar exceeds window frame.
Depth of window frame — thickness of operating bar exceeds window frame ≧ 8cm, the blinds can fit in the frame.
■ Minimum size unit: 0.5cm
■ The shape of window may not be vertical and level. It is suggested to measure three positions of height and width to avoid
unseccessful installation.
■ Reduce 0.5~1cm is suggested for customized width. This is to leave some space for possible alteration in installation work.
■ The surroundings of window has to be completely flat and no obstables around when deiciding window sizes.
■ Sizes shown on the products in the shipment are the complete sizes including systems and components.
Plain / Printed
■ Tool: A ladder, an electric drill (with 6mm tail), a hammer, electric screwdriver, a measuring tape, a level and a pencil.
■ Components: Spring bracket, self-tapping screws, normal screws, plastic nylon anchors, safety hook.
Steps:
1. Decide the method of fitting brackets: Face-fixing or Top-fixing.
2. Mark screw holes to fix support bracket. Make sure that they are leveled.
* Avoid placing the bracket onto the parts of headrail and hinder operation of the blinds.
* 3 to 4 brackets might be needed for wider products. The distance between these brackets should be even to avoid uneven weight.
3. Drill at the reference mark, nail plastic nylon anchors into the wall and secure the mounting brackets.
4. Snap the front clip of the spring bracket into the notch on the upper side of the shade and press it inward.
5. Push up and level the headrail while pressing the headrail inward. Fix it when the spring restores.
* Make sure the headrail is securely locked to prevent it from falling.
6. Installation complete
Fix cord loop on the safety hook and straighten it. Secure safety hook on the wall with screws.
* The installation is optional, depending on your habits and housing environment of child safety.
Notice:
Keep children away from accessories, pulling cords and slats. Any installation question, please contact MSBT staff for assistance.
Attachment:
Plain / Printed Fauxwood venetian blind Installation instruction A4 >> Download／Print
Embossed Fauxwood venetian blind Installation instruction A4 >> Download／Print
Warranty
• Unpack and check product conditions upon delivery
• Our on-site services or installation includes acceptance check and examination to ensure our service is well delivered.
• One-year warranty is granted under normal usages and for non man-made defects.
• When warranty period expires, maintenance or part costs will be charged after evaluation.
