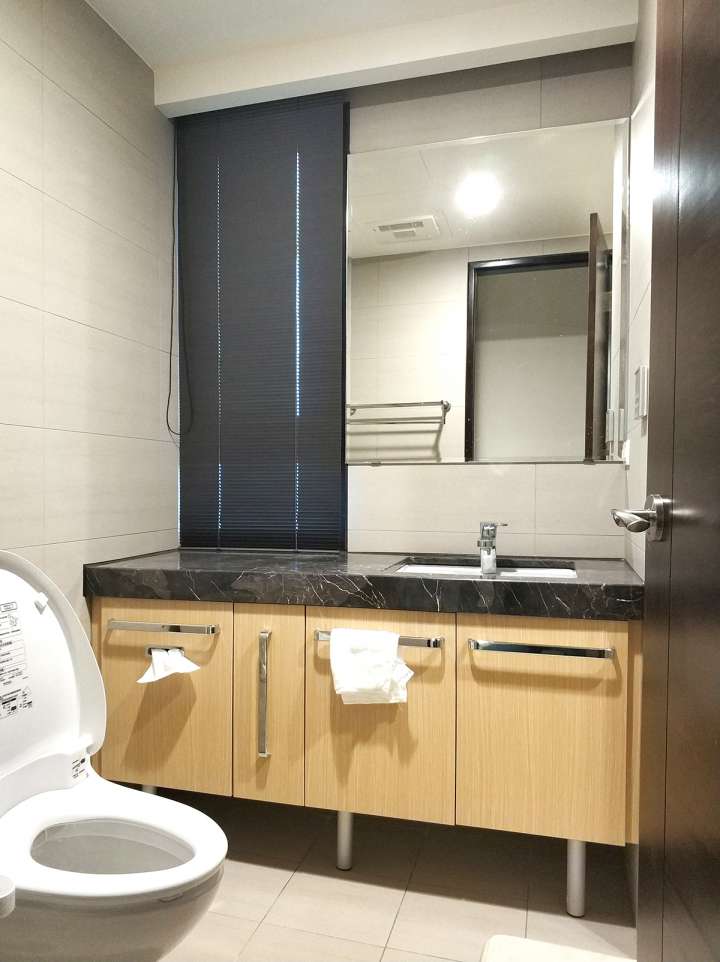

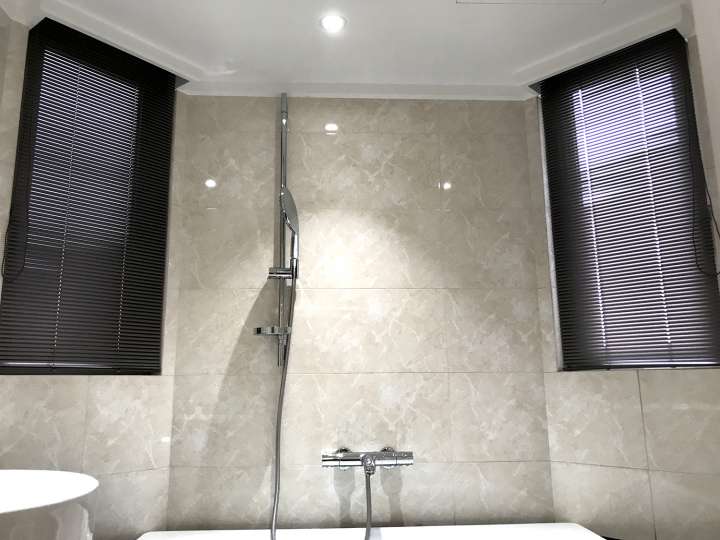

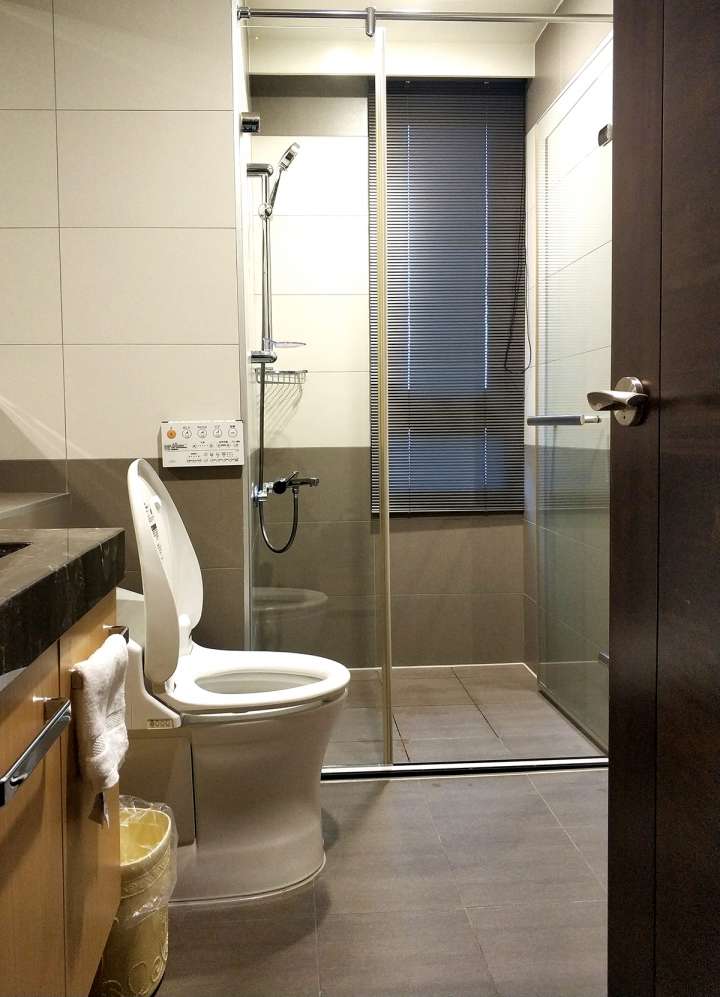

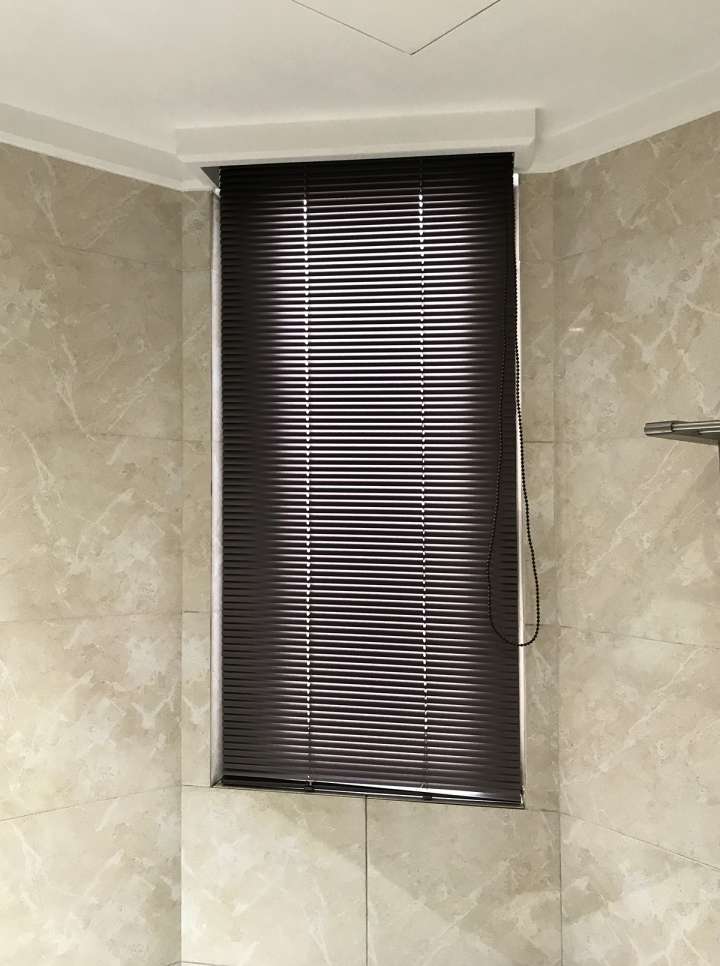

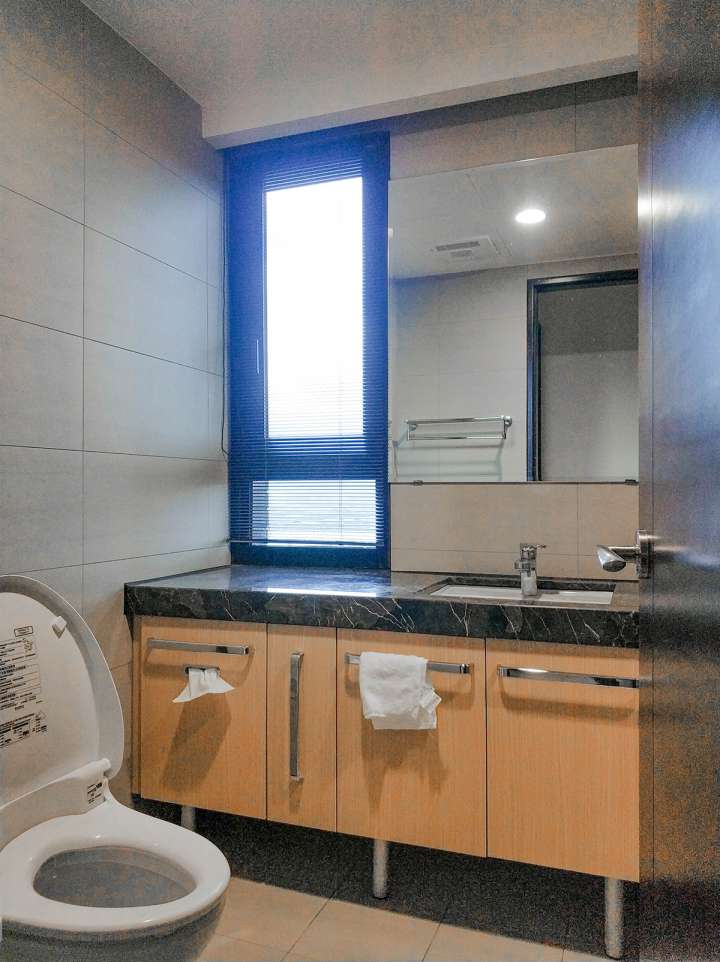

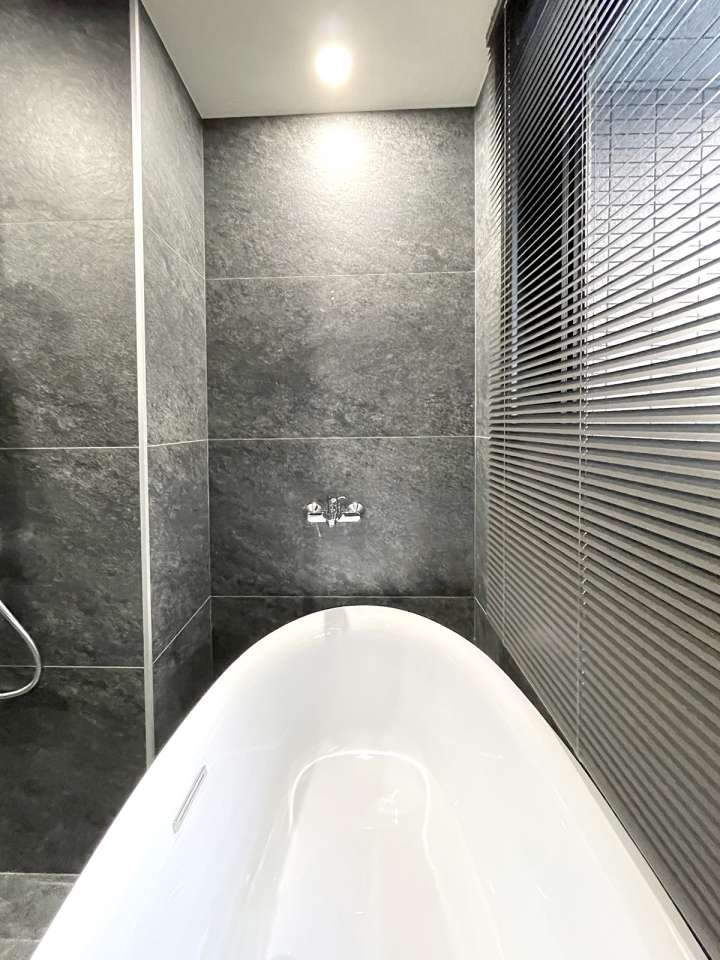

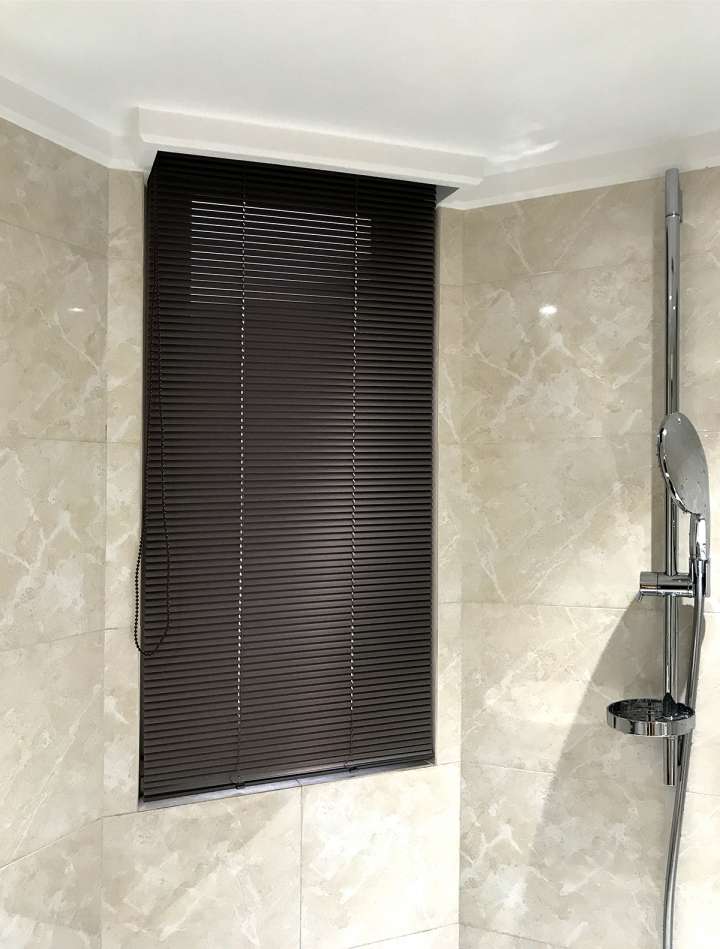

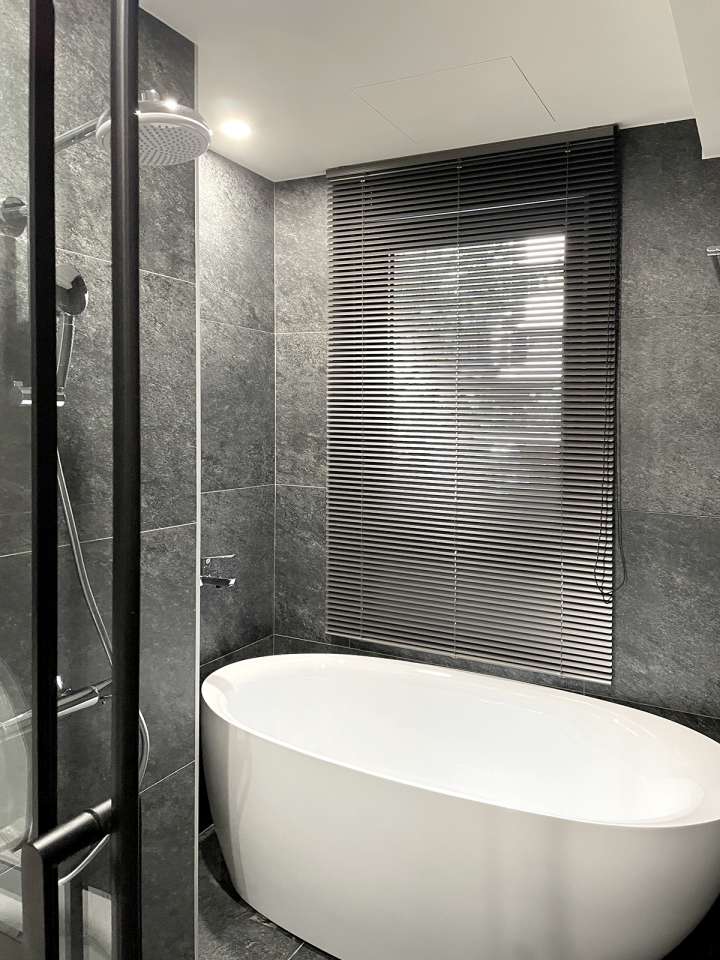

Various types of metallic finishes, different slat width to choose from. With ball chain loop system brings out exquisite and fine texture.
More made to measure Venetian BlindsInsert sizes for an estimate: NTD {$ formatPrice(pre_calc_price) $} up {$ formatPrice_currency(pre_calc_price) $}
Width
cm
Out of range
Height
cm
Out of range
Customizable size range:
Width: {$ size_range.width.min ? size_range.width.min : '' $}
{$ size_range.width.min && size_range.width.max ? ' ~ ' : '' $}
{$ size_range.width.max ? size_range.width.max : '' $} cm
{$ size_range.width.max ? '' : 'Above' $}
｜Height: {$ size_range.height.min ? size_range.height.min : '' $}
{$ size_range.height.min && size_range.height.max ? ' ~ ' : '' $}
{$ size_range.height.max ? size_range.height.max : '' $} cm
{$ size_range.height.max ? '' : 'Above' $}
Colors:
Delete a swatch
Get a swatch

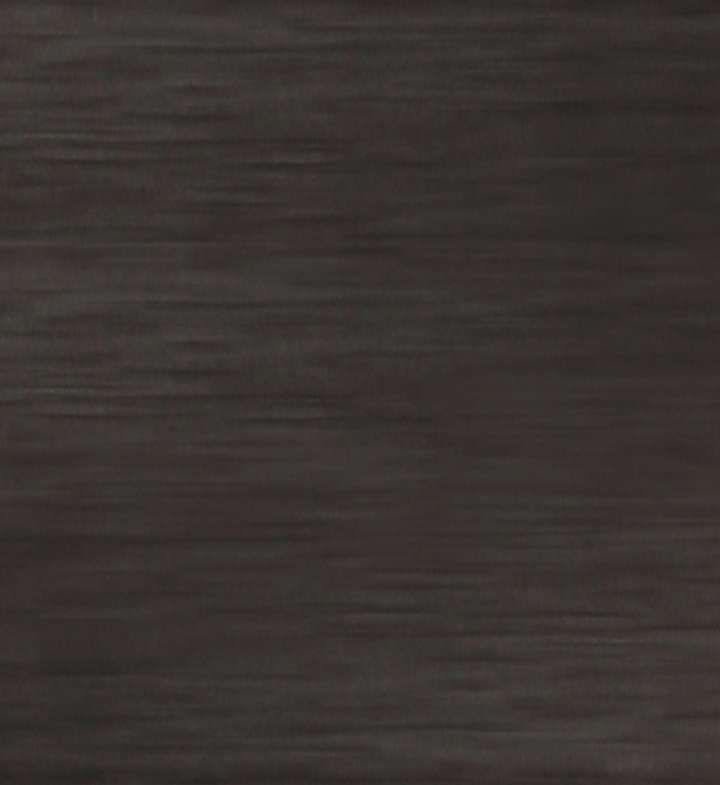

Brushed1607(On Sale!)
Levels of Difficulty
Easy
[Size] Including headrail hardware
Custom-made: Can be customized within 50～270cm(W)× 50～300cm(H)
Width of slat: 16mm/25mm/50mm
Thickness of slat: 0.18mm
[Material] Slat – Aluminum. Headrail – Aluminum
[Cleaning] Waterproof slats, can use a duster, dry cloth or vacuum cleaner
■ Complete installation instructions and components attached
Width of slat: 16mm/25mm
■ Brackets and hardwares are included in the blind. The total thickness after installation is about 4.5 cm.
■ If the blind is installed in the curtain box or notch, the inner depth should be at least more than 6 cm for smooth installation.
■ The covering area indents 0.2cm from left and right sides. It almost aligns with the headrail.
Width of slat: 50mm
■ Brackets and hardwares are included in the blind. The total thickness after installation is about 8 cm.
■ If the blind is installed in the curtain box or notch, the inner depth should be at least more than 10 cm for smooth installation.
■ The covering area indents 0.2cm from left and right sides. It almost aligns with the headrail.
Ballchain loop: Control slat opening + slat angle
Decide which way you'd like to install your curtain, inside mount or outside mount. Measure by the following instructions:
Inside Mount
■ Install within the window frame. Fit in the window frame.
■ Simple and smooth outlook. Reduce the area of covering window.
STEP 1：Measure the in frame width
Please measure positions of left, middle, and right. Write down the minimum figures of these three, and that is the blind width.
STEP 2：Measure the in frame height
Please measure positions of left, middle, and right. Record the maximum figures of these three, and that is the blind height
STEP 3: Measure the depth of window frame & the thickness of handle bar exceeds window frame.
Depth of window frame — thickness of operating bar exceeds window frame ≧ 5cm, the blinds can fit in the frame. (Slats 50mm: ≧ 8cm)
■ Minimum size unit: 0.5cm
■ The shape of window may not be vertical and level. It is suggested to measure three positions of height and width to avoid
unseccessful installation.
■ Reduce 0.5~1cm is suggested for customized width. This is to leave some space for possible alteration in installation work.
■ The surroundings of window has to be completely flat and no obstables around when deiciding window sizes.
■ Sizes shown on the products in the shipment are the complete sizes including systems and components.
■ Tools: Ladders, electric drill (6mm tail), hammer, electric screwdriver, a measuring tape, a level and a pencil
■ Components: swivel brackets, plastic nylon anchors, screws, self-tapping screws, safety hook
1.Decide the method of fitting brackets: Top-fixing or Face-fixing
2. Mark reference holes to fix support bracket. Make sure that they are leveled.
* 3 to 4 brackets might be needed for wider products. The distance between these brackets should be even to avoid uneven weight. *
3. Drill at the mounting mark, nail plastic nylon anchors into the wall and secure the mounting brackets.
4. Tilt the headrail to snap into the front side of the bracket.
5. Follow the illustrations to buckle Lansin to the bracket.
[1] Press thr bracket spring at the front
[2] Push up and level the headrail. Bracket bolt can snap catch the notch at the back of the headrail.
※ Make sure the headrail is securely locked to prevent it from falling.
6. Fix ballchain onto the safety hook and straighten it. Secure safety hook on the wall with screws.
*The installation is optional, depending on your usages and housing environment of child safety.
7. Installation complete
* Notice: Keep children away from accessories, pulling cords and slats. Any installation question, please contact MSBT staff for assistance.
* Attachment: Aluminum venetian blind-Lansin Installation Instruction A4 >> Download／Print
Warranty
• Unpack and check product conditions upon delivery
• Our on-site services or installation includes acceptance check and examination to ensure our service is well delivered.
• One-year warranty is granted under normal usages and for non man-made defects.
• When warranty period expires, maintenance or part costs will be charged after evaluation.
